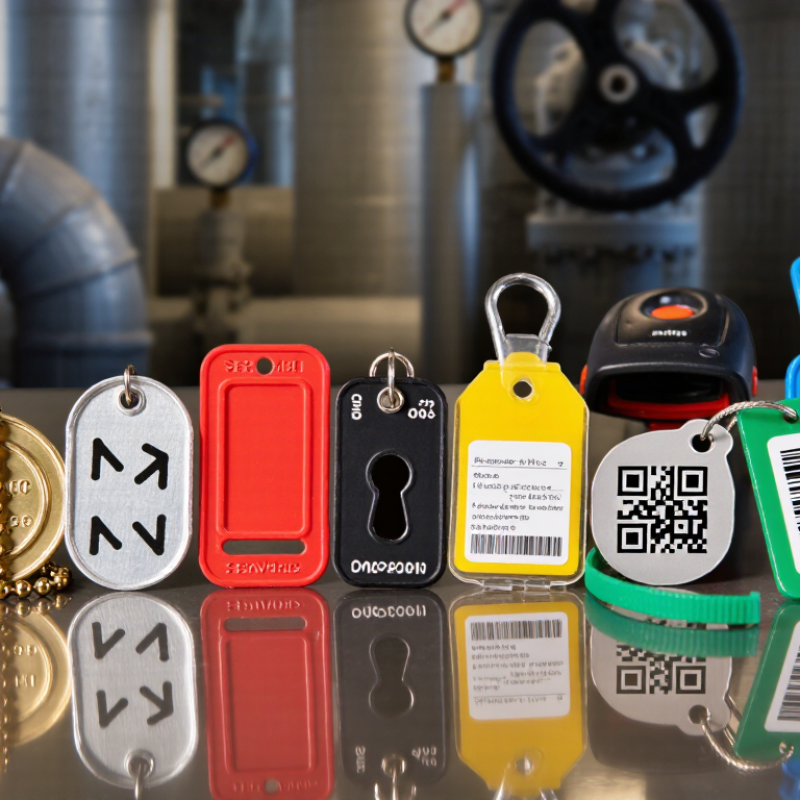

China Top 10 Valve Tag Types for Global Buyers

China Top 10 Valve Tag Types for Global Buyers examines a small component with a major operational role. A valve tag may carry service data, line numbers, flow direction, pressure ratings, or maintenance history. In a crowded plant, that information must remain readable after years of heat, vibration, chemicals, and cleaning.

Fortune Business Insights valued the global industrial valves market at USD 76.05 billion in 2023. It projects the market to reach USD 117.49 billion by 2032. MarketsandMarkets also identifies process industries, water treatment, energy, and chemicals as major demand sectors. However, these reports rarely separate valve tag sales. That limitation matters. A large valve market does not automatically prove equal tag demand.

ISO 14224 and IEC 62424 emphasize consistent equipment data and clear identification practices. As process-safety authority Paul Gruhn has stated, “Good identification is the foundation of effective safety management.” The principle is simple. The execution is not.

This guide compares ten valve tag types commonly sourced from China. It considers material, engraving method, attachment style, environmental resistance, customization, and export suitability. Stainless-steel tags may suit outdoor pipelines, while laminated plastic tags can serve cleaner indoor systems. QR-code tags offer traceability, but only when scanners, databases, and workers remain aligned.

One detail deserves reflection. The cheapest tag is rarely the lowest-cost choice. A faded number can delay isolation, confuse maintenance, or trigger a repeated inspection. Global buyers should evaluate evidence, not promises. Sample testing, readable drawings, and documented material grades provide stronger confidence than attractive catalog images.

China Top 10 Valve Tag Types for Global Buyers
Table of Contents [Hide]
1 Valve Tags Explained: Purpose, Materials, and Identification Standards
2 Metal Valve Tags for Industrial Systems and Harsh Environments
3 Plastic and Laminated Valve Tags for General Applications
4 Specialized Valve Tags for Safety, Flow, and Maintenance Control
5 How Global Buyers Select the Right Valve Tag Type and Supplier

Valve Tags Explained: Purpose, Materials, and Identification Standards

China Top 10 Valve Tag Types for Global Buyers

Valve Tags Explained: Purpose, Materials, and Identification Standards

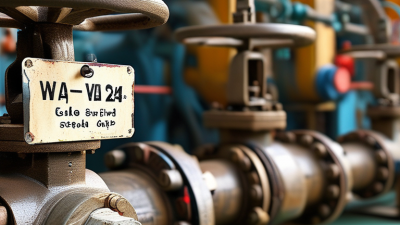

Valve tags turn a confusing pipe network into a readable operating map. The ten common types include equipment ID, line number, service, flow direction, valve position, pressure rating, material, maintenance, lockout, and emergency tags. Each tag should match the plant’s drawings, operating procedures, and inspection records. A clear code prevents technicians from isolating the wrong valve during maintenance.

Material selection depends on location and exposure. Stainless steel suits corrosive areas, while anodized aluminum offers a light, durable option. Laminated plastic works well indoors and supports color coding. Outdoor tags need UV resistance, strong contrast, and secure fasteners. Small details matter. A loose tag becomes a silent risk.

Identification practices often reference MSS SP-25 for valve and fitting markings. Pipe colors may follow ASME A13.1, but valve tags still require project-specific control. Buyers should request tag samples, engraving depth, language options, and temperature limits before production. I have found that identical codes can confuse multilingual teams. That problem is easy to underestimate. Good tags remain legible after cleaning, vibration, and years of handling. No system is flawless, so field verification should remain part of every inspection.

China Top 10 Valve Tag Types for Global Buyers - Valve Tags Explained: Purpose, Materials, and Identification Standards

No. Valve Tag Type Primary Purpose Typical Information Common Materials Identification Method Relevant Standards or Practices Typical Applications
1 Valve Identification Tag Provides a unique reference for locating and managing a valve. Tag number, valve service, line number, size, and location. Stainless steel, aluminum, anodized aluminum, or laminated plastic. Engraving, laser marking, stamping, or printed characters. Project tagging specifications; ISA-5.1 conventions may support instrument and control identification. Process plants, water treatment facilities, utilities, and industrial piping systems.
2 Flow Direction Tag Shows the intended direction of fluid movement through the valve or connected pipe. Arrow, flow medium, and sometimes pressure or temperature limits. Aluminum, stainless steel, rigid PVC, or durable laminated plastic. Printed arrow, engraved arrow, adhesive marker, or painted stencil. ASME A13.1 is commonly referenced for piping system identification and flow-direction marking. Steam, compressed air, chemical, fuel, cooling-water, and process lines.
3 Open/Closed Status Tag Indicates whether a manually operated valve is intended to be open, closed, or in an intermediate position. OPEN, CLOSED, normally open, normally closed, or position remarks. Stainless steel, aluminum, plastic, or coated steel. Engraved text, contrasting color fields, rotating indicator, or wired-on marker. Facility lockout/tagout procedures and documented operating instructions. Isolation points, utility systems, maintenance areas, and emergency shutdown arrangements.
4 Lockout/Tagout (LOTO) Tag Warns personnel that equipment or an energy-isolating valve must not be operated. DANGER or DO NOT OPERATE, authorized person, date, contact details, and reason. Laminated card stock, rigid plastic, polyester, or weather-resistant synthetic material. Handwritten or printed information, usually attached with a non-reusable tie. OSHA 29 CFR 1910.147 in the United States; equivalent local occupational-safety rules may apply. Maintenance, repair, inspection, confined-space work, and hazardous-energy control.
5 Warning or Hazard Tag Alerts workers to hazardous media, hot surfaces, toxic exposure, high pressure, or other risks. Hazard wording, hazard symbol, precaution, and required personal protective equipment. UV-stabilized plastic, polyester, aluminum, stainless steel, or coated metal. High-contrast colors, pictograms, durable printing, or chemical-resistant engraving. ISO 7010 safety signs; OSHA and GHS-related hazard communication practices may be relevant. Chemical processing, laboratories, refineries, gas systems, and high-temperature services.
6 Control Valve Tag Identifies a valve that regulates flow, pressure, temperature, level, or another process variable. Instrument loop tag, service, fail position, actuator type, and control function. Stainless steel, aluminum, engraved plastic, or industrial polyester. Alphanumeric tag number linked to P&ID, loop diagram, and control-system records. ISA-5.1 provides widely used instrumentation and control identification conventions. Chemical, pharmaceutical, energy, water, food-processing, and manufacturing plants.
7 Pressure and Rating Tag Records pressure-temperature limits and connection or class information for safe selection and operation. Nominal size, pressure class, maximum allowable pressure, temperature range, and end connection. Stainless steel, nickel-plated brass, aluminum, or engraved metal plate. Permanent engraving, stamping, casting, or laser marking. ASME B16.34 covers pressure-temperature ratings and marking requirements for many industrial valves. Pressurized piping, steam, oil and gas, power generation, and process equipment.
8 Material and Service Tag Identifies the valve body material, trim, gasket, or service compatibility for maintenance and traceability. Body material, trim material, fluid service, corrosion category, and specification code. Stainless steel or anodized aluminum for permanent use; chemical-resistant plastic for temporary records. Engraving, stamping, barcode, QR code, or digitally printed label. ASTM material specifications and project material-control procedures may be referenced. Corrosive chemicals, hygienic processing, seawater systems, and critical spare-parts management.
9 Inspection and Maintenance Tag Documents inspection status, service history, testing, or the next scheduled maintenance activity. Inspection date, technician, work order, test result, due date, and corrective action. Laminated polyester, rigid plastic, stainless steel, or aluminum. Barcode, QR code, printed label, engraved plate, or handwritten maintenance card. Site preventive-maintenance procedures; API 570 may apply to in-service piping inspection programs. Pipelines, pressure systems, rotating-equipment interfaces, and regulated maintenance programs.
10 Barcode or QR Code Tag Connects the physical valve to digital asset, maintenance, inspection, and inventory records. Asset ID, digital record link, service data, spare-parts information, and inspection history. Polyester, polycarbonate, anodized aluminum, or laser-marked stainless steel. 1D barcode, 2D QR code, RFID, or human-readable asset number. ISO/IEC 15415 and ISO/IEC 15459 may support data-carrier quality and unique identification practices. Large facilities, digital maintenance systems, warehouses, offshore assets, and remote inspections.

Metal Valve Tags for Industrial Systems and Harsh Environments

China Top 10 Valve Tag Types for Global Buyers

Metal valve tags support identification when dust, heat, moisture, and vibration challenge ordinary labels. For industrial systems, common options include stainless steel tags, aluminum tags, brass tags, engraved tags, stamped tags, embossed tags, laser-marked tags, cable-tie tags, wraparound tags, and lockout-style warning tags. Each type serves a different operating need.

Stainless steel tags suit chemical plants, outdoor pipelines, and coastal equipment. Their surfaces resist corrosion and remain readable after repeated cleaning. Aluminum tags reduce weight and work well on instrument panels or smaller valves. Brass offers a traditional appearance, but it may need protection in aggressive chemical areas. Engraved and stamped markings provide depth, while laser marking creates sharp text for detailed flow directions, valve numbers, and service information.

Mounting details matter more than many buyers expect. A tag should match the valve size, hole position, cable material, and maintenance routine. Rounded corners reduce snagging near gloves and tools. Thick metal feels reliable, but excessive thickness can complicate installation. That is an easy mistake.

In harsh environments, buyers should request material certificates, marking samples, and corrosion-test information before ordering. Check readability after abrasion, salt spray, heat exposure, and chemical contact. Small text can look impressive in a drawing but fail during a night inspection. Use clear lettering, strong contrast, and enough space for updates. No tag survives every condition. The specification still needs honest limits.

Plastic and Laminated Valve Tags for General Applications

China Top 10 Valve Tag Types for Global Buyers

Plastic and Laminated Valve Tags for General Applications

Plastic and laminated valve tags remain practical choices for water systems, HVAC lines, compressed air, and light industrial piping. They resist moisture better than ordinary paper labels. Plastic tags also tolerate routine handling, oil splashes, and mild cleaning chemicals. A laminated surface protects printed text from scratches and fading. Keep it readable.

The 2024 Industrial Labels Market report by MarketsandMarkets forecasts growth from roughly USD 50 billion in 2023 to above USD 67 billion by 2028. This trend reflects wider demand for durable identification in industrial facilities. For valve tags, buyers should check material thickness, print contrast, hole strength, and temperature limits. Polypropylene suits many indoor applications, while polyester often performs better under ultraviolet exposure and repeated cleaning. Small details matter.

Field conditions still decide performance. A tag may survive rain but fail beside a hot valve or vibrating pump. Clear lamination can reduce abrasion, yet poor sealing may allow moisture into the printed layer. Buyers should request samples and test them against actual chemicals, heat, and installation tools. ISO 17398 provides useful principles for evaluating the durability of safety-related signs, although it does not replace a project-specific specification. A perfect material choice does not exist. Even experienced purchasers sometimes overvalue appearance and overlook legibility after installation.

China Top 10 Valve Tag Types for Global Buyers - Plastic and Laminated Valve Tags for General Applications

The chart compares representative maximum continuous-use temperatures for common plastic and laminated valve-tag constructions. Actual performance depends on the resin grade, adhesive, printing process, chemical exposure, and supplier specification.

Temperature figures are representative material capability values in °C for general identification applications, not universal product guarantees. Confirm the approved temperature range before selecting tags for high-temperature, outdoor, or chemically exposed valve systems.

Specialized Valve Tags for Safety, Flow, and Maintenance Control

China Top 10 Valve Tag Types for Global Buyers

Specialized valve tags support safer decisions during operation, inspection, and maintenance. Common types include danger, warning, lockout, flow direction, open/closed status, service identification, equipment numbering, calibration, inspection, and temporary-status tags. Each tag should show clear wording, durable printing, and visible color contrast. Flow arrows must match the actual pipeline direction. A small mistake can cause serious confusion.

Materials matter in real facilities. Stainless steel tags suit outdoor areas, while laminated plastic tags work well in controlled indoor spaces. Engraved or stamped markings remain readable after repeated cleaning. Tags should resist moisture, oil, vibration, and temperature changes. They also need secure attachment around valve handles, pipes, or nearby supports. Site procedures and applicable safety standards should guide the final design, not assumptions.

Tips: Use short warnings, large text, and consistent symbols. Check every tag during commissioning. Replace faded tags quickly. Keep one identification system across drawings, maintenance records, and equipment labels. A useful tag should answer three questions: What does this valve control? Which direction is flow? What action is allowed? Field experience shows that color alone is unreliable, especially in poor lighting. Text and symbols should support each other. No system is perfect. Human errors still happen, so periodic reviews remain necessary.

How Global Buyers Select the Right Valve Tag Type and Supplier

Global buyers rarely choose a valve tag by appearance alone. They compare material, identification method, environment, and supplier control. Common options include stainless-steel stamped tags, engraved laminate tags, aluminum plates, barcode labels, QR-code tags, RFID tags, wire-on tags, flow-direction tags, lockout tags, and asset plates.

Service conditions decide the shortlist. Stainless steel suits outdoor pipelines, vibration, moisture, and many chemical areas. Engraved laminate works well indoors, but sunlight can expose its limits. QR codes improve access to drawings and maintenance records. RFID can support larger facilities, although readers and data systems add cost. MarketsandMarkets reported that the industrial valves market could grow from about USD 78.3 billion in 2023 to USD 97.1 billion by 2028. More installed valves mean more identification points, not simply more labels.

Supplier evaluation should include sample testing, marking depth, adhesive performance, character contrast, and batch traceability. Ask for salt-spray, abrasion, temperature, and chemical-resistance evidence when relevant. The AMPP IMPACT study estimated global corrosion costs at nearly USD 2.5 trillion annually, or about 3.4% of global GDP. Tag failure is smaller, but it can still delay isolation or maintenance. That risk deserves attention. Buyers should also verify compliance with project standards, such as ISA-5.1 identification practices or applicable ISO requirements. A supplier with fast delivery may still be unsuitable if numbering changes between batches. I have seen specifications focus heavily on metal grade while ignoring database accuracy. That is a mistake worth revisiting. Clear artwork approval, controlled revisions, and realistic field samples often reveal more than a polished quotation.
